Description
TCHD Video's converter solution offers many different kinds of video converters, matrix, switcher, distributors and extenders to solve annoying problems such as signal decrease/ deterioration and latency when switching.
Main

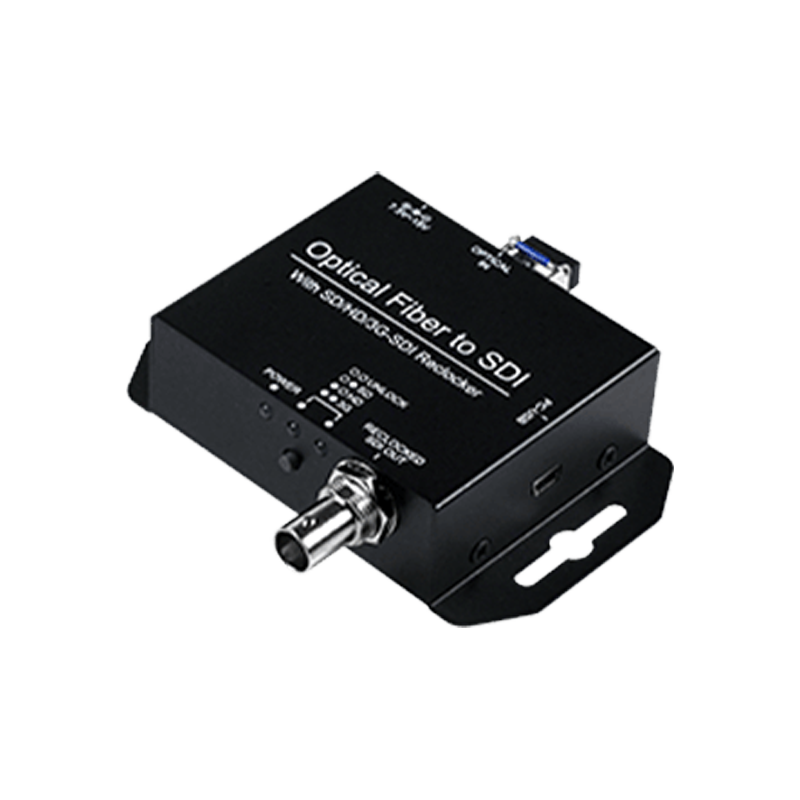

| Model Name | Optical Fiber to SDI |
| Description | LC Fiber to 3G-SDI Converter |
| Feature | Multi-Standard Support ( 3G/HD/SD-SDI ) Up to 10KM Transmission with Single Mode Optical Fiber Industrial Standard LC Type Connector ( Input Wavelength : 1260~1620nm ) SFP Port with MSA ( Multi-Source Agreement ) Compatible Highly Compatible with SDI-Fiber Equipments Interchangeable Modular Design for Longer Cable Reach or Different Connector Type |
Video
| Input Interface | Video LC Type Connector×1 for Single-Mode Optical Fiber Cable Support Wavelength : 1260~1620 nm |
| Output Interface | Converted Video SDI×1 |
| Supported Video Input Format | LC Fiber 1920×1080p@60/50fps 1920×1080p@30/25/24fps 1920×1080i@60/50fps 1280×720p@60/50fps 720×480i@60fps 720×576i@50fps |
| Supported Video Output Format | SDI ( Converted ) As Input Fiber Format |
| GENLOCK Frame Lock Mode | N/A |
Misc
| Audio Input Format | LC Fiber : Up to 16 Channels, 24bit, 48KHz |
| Audio Output Format | SDI : Up to 16 Channels, 24bit, 48KHz |
| Plug & Play | ✓ |
| DC In | 7.5V ~ 15V |

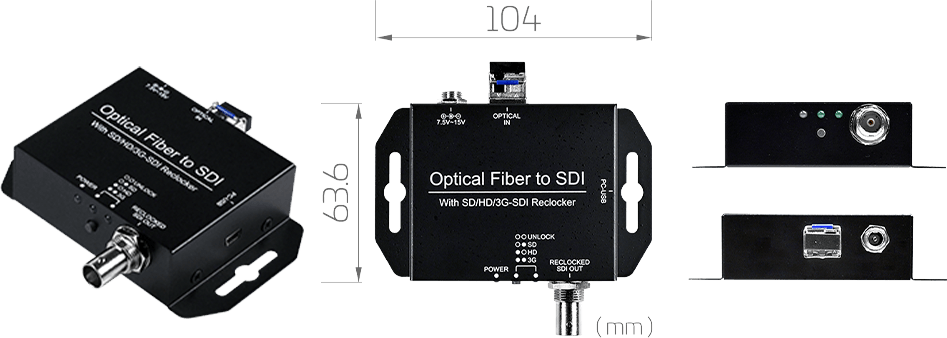

| Dimension | L:104mm×W:63.6mm×H:26mm |
